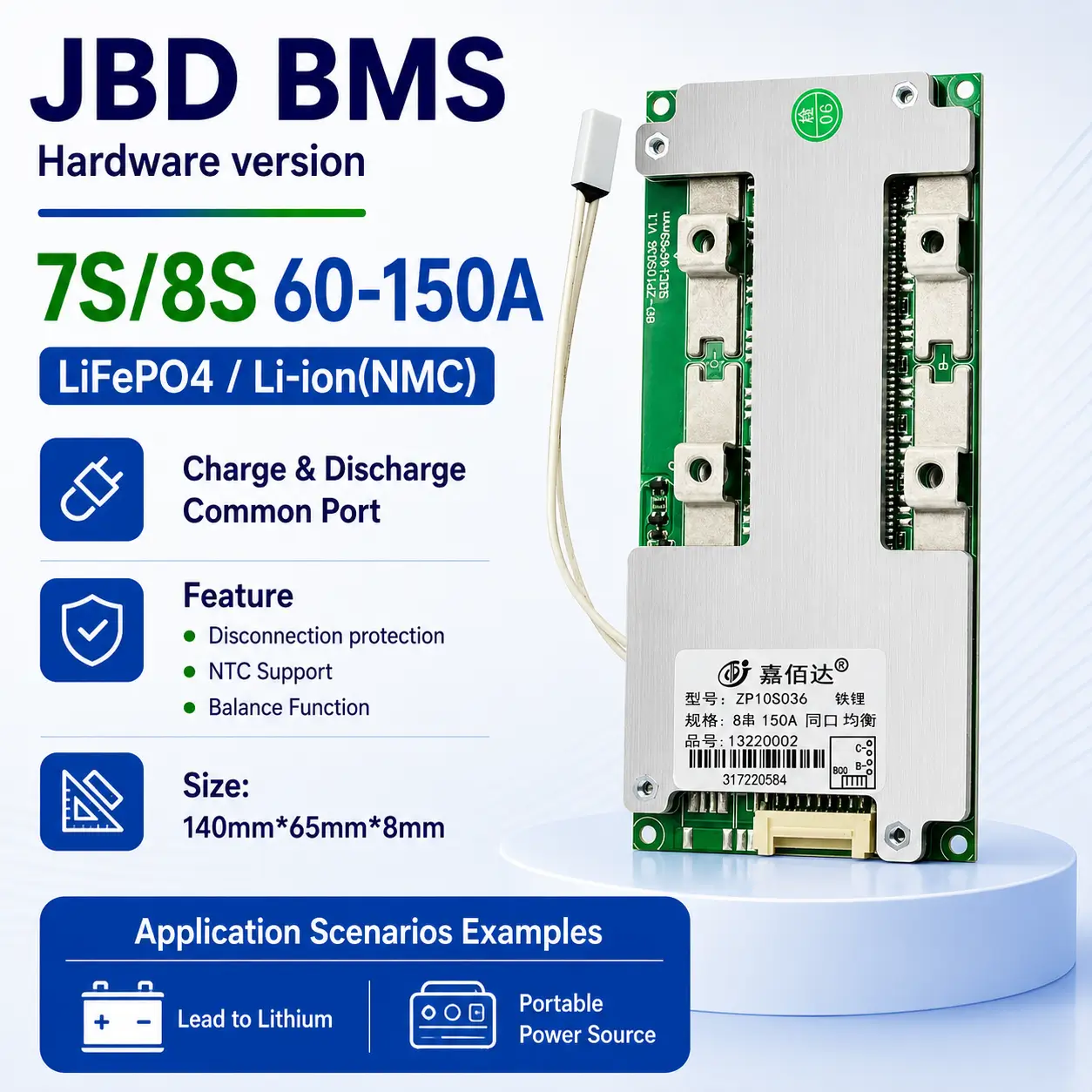

      JBD BMS 8S 24V 60A-150A for LiFePO4 / NMC Li-ion
      • JBD BMS 8S 24V 60A-150A for LiFePO4 / NMC Li-ion
      1 / 1

      JBD BMS 8S 24V 60A-150A for LiFePO4 / NMC Li-ion

      $9.80 USD
      $12.80 USD
      Oferta $3.00 USD
      Calcular a taxa de frete na finalização da compra

      • Factory Direct

      • Tech Support

      • Worldwide Shipping

      • Secure payments

      Model

      Pruduct Introduction

      1.Function Configuration

      Model: JBD-ZP10S036

      Applicable Battery Type: 3.2V Lifepo4 Lithium Battery

      Number of strings supported:  8S

      Continuous current (optional):  60A 100A 150A

      Battery Pack Voltage:  24V System (25.6V Nominal）

      External NTC: Yes

      Balance Function: Yes

      Drop-line protection support

      Overcharge and over-discharge protection

      Charge/discharge over-current protection

      Short-circuit protection

      Discharge over-temperature protection

      Built-in FET high-temperature protection

      2.Basic Parameter

      Interface type: Common port for charge and discharge

      Operating temperature: -20℃~75℃

      Size: 140±2mm*65±0.5mm*8±1mm

      Consumption of running: ≤100uA

      Balance current: ≤250mA

      Circuit Resistance: ≤10mΩ

      3.Package Included: BMS + Balance Wires

      Note: BMS Specification-please contact customer service if needed.

      4.Wiring Diagram

      Please refer the wiring diagram to connect the bms in order.

      5.Applications

      Lead-acid to Lithium Replacement, Power Tools, Electric Scooters, Electric Bicycles, Small Electric Vehicles, Backup Power Systems, Customized LiFePO4 Battery Packs and so on.






      Frequently Asked Questions
      Our customer support is available Monday to Sunday
      View more
      Q1: How do I choose the right BMS model?
      A: Please confirm your battery type, series number, continuous current,  communication requirements, and application scenario before ordering.Not sure which model to choose? Please contact Cara for professional model selection support.
      Q2: What battery types are supported?
      A: Please confirm your battery type, series number, continuous current,  communication requirements, and application scenario before ordering.Not sure which model to choose? Please contact Cara for professional model selection support.
      Q3: What does “S” mean in BMS specifications?
      A: “S” means the number of cells connected in series. For example, 8S means 8 cells in series.
      Q4: What current rating should I choose?
      A: The BMS current should be selected according to the battery pack load current and application. It is recommended to choose a BMS with enough current margin.
      Q5: Does the BMS support communication functions?
      A: Some smart BMS models support UART, RS485, CAN, Bluetooth, or WiFi communication. Hardware BMS models may not support communication.
      Q6: Can you provide wiring diagrams and datasheets?
      A: Yes. We can provide datasheets, wiring diagrams, and technical support for model selection and installation. If you are not sure which model to choose, please contact Cara for support.
